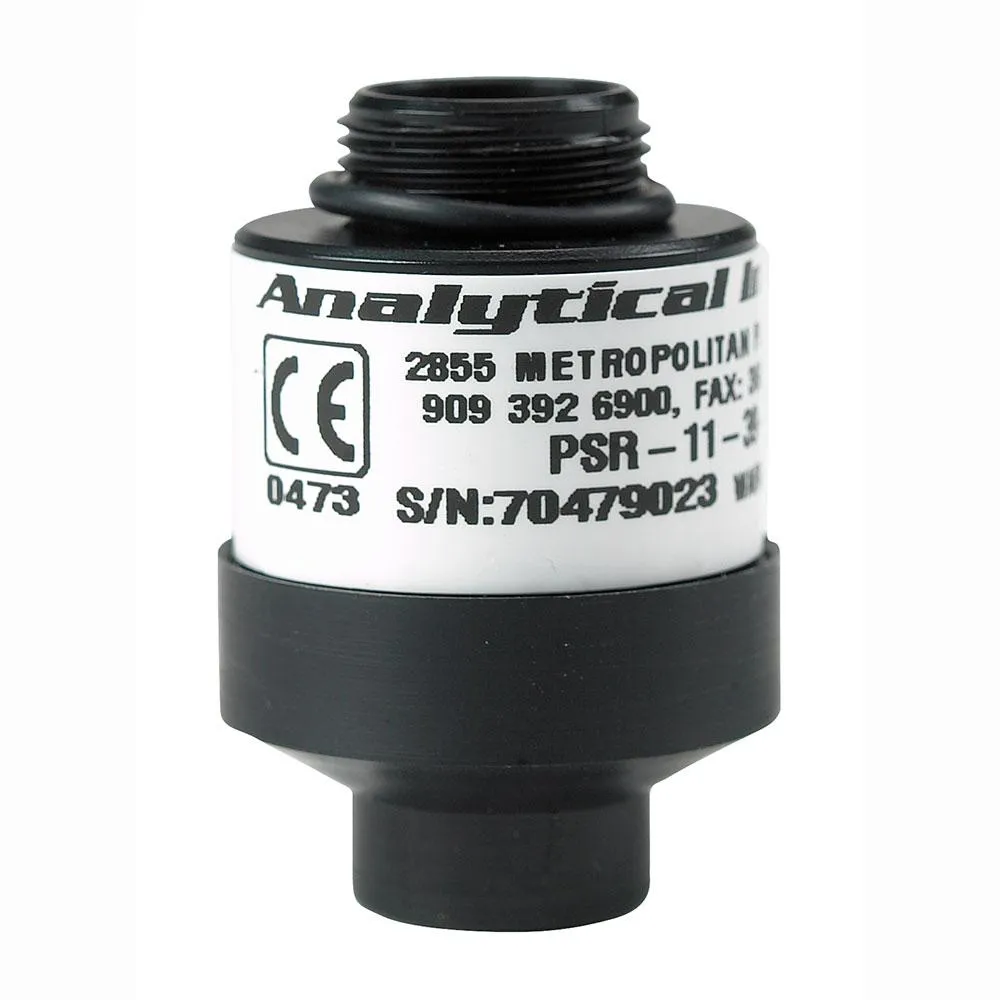

Advanced galvanic type oxygen sensor with excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30" of water column pressure test and stability at 100% oxygen. The widest range of oxygen sensors offered by Analytical Industries, Inc. are "Made in USA"
- Measuring Range 0-100%
- Accuracy 1 +/-2% of Full Scale
- Signal Output 2 8.5-14 mV
- Linearity +/-2% of Full Scale
- Response T90 6 sec
- Temp Coefficient Compensated
- Operating Temp 0 to 45°C
- Recommended Storage 3 0 to 25°C
- Qualified at 1.8 ATA
- Shelf Life 4-6 months
- Humidity Non-condensing 0-99% RH
- Expected Life 42 months
- Warranty 5-12 months
- Electrical Conn 3 Pin Molex
* Conditions - Specifications validated during design and in pursuit of improvement are subject to change without notice
At constant temperature and pressure.
In air (20.9% oxygen) at 25°C and 1 atm.
Sensor may be stored up to 55°C on an intermittent basis, for example, during transportation.
In original Package at 25°C and 1 atm.
Brand:
Diverite
Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for sensor determined to be defective by Analytical Industries Inc. is limited to replacing the sensor. Analytical Industries In. will not be liable for buyer’s negligence, misapplication, abuse or accident.
Specifications
| Brand | Diverite |
