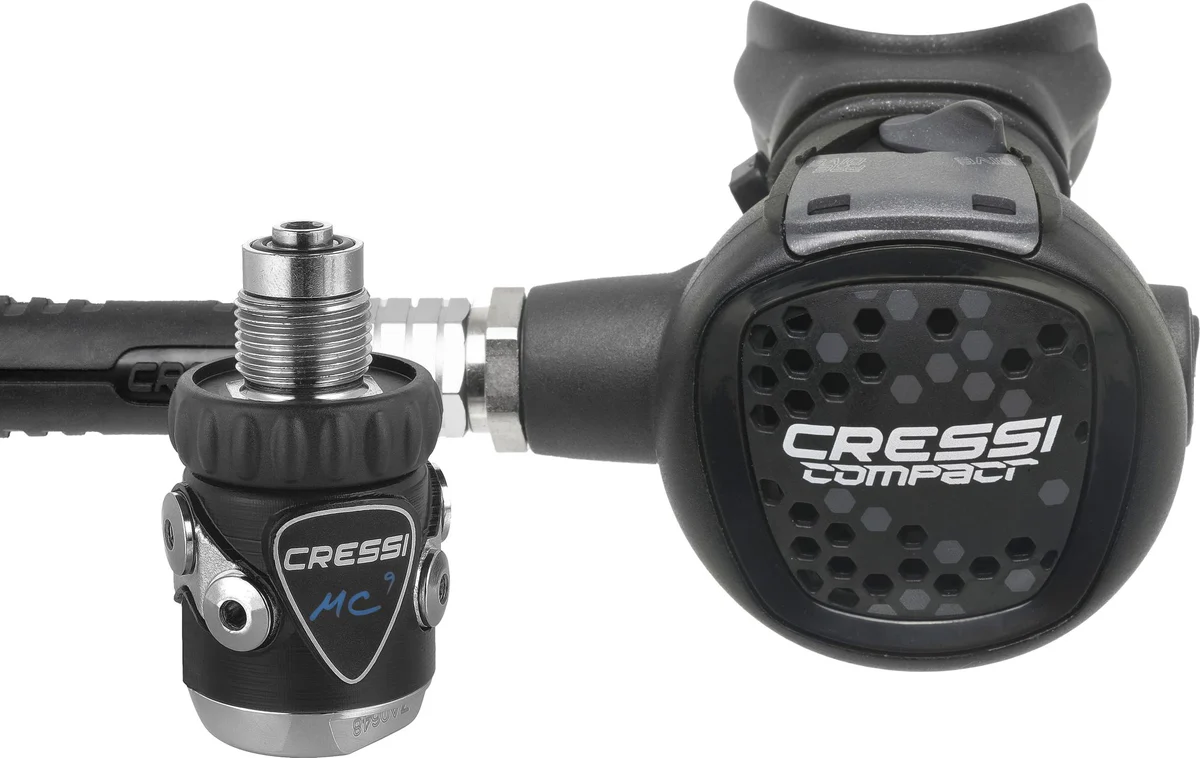

This premiere travel regulator packs maximum performance into minimum space. A true featherweight second stage, the compact is built from lightweight techno-polymers to eliminate jaw fatigue. Easy to pack and easy to dive, the compact includes dive/pre-dive venturi switch for managing freeflow and maximizing performance at depth.
Technical features 1st stage:
- Balanced diaphragm (seal chamber for mc9sc)
- 2 outlets hp 7/16 unf
- 4 outlets mp 3/8 unf
- Service pressure: 300 bar (4350 psi) din version, 232 bar (3365 psi) yoke version
- Calibration pressure: 10 bar
- Brass body electroless nickel plated
- High capacity conical fi lter electroless nickel plated
- Aisi 316 removable nozzle
- Hyper-balancing
- Anti-pressure drop pneumatic spring
- Setting spring: stainless steel with micropeening treatment
- Replaceable cylinder with anti-friction and anti-corrosion properties
- Elastomer protector
- Flow rate: 4500 l/min
- Yoke version weight: 590 gr
- Din version weight: 450 gr
Technical features 2nd stage:
- Downstream system
- Adjustable venturi effect
- Patented antifriction lever
- Big purge button
- Anti-scratch surface
- Bayonet-type cap holder with security lock
- Removable exhaust tee without tools
- Weight without hose: 135 gr
Combination performance:
- Average cracking effort 6 mbar
- Average breathing effort 1 j/l
- Jacketed hose extremely light and flexible weight: 153 gr
- Certification en250/2014 A>10° c
Brand:
Cressi
Model:
Din, Int
Color:
Blue, Black, White
Specifications
| Color | Black or Blue or White |
| Type | DIN or INT |
| Brand | Cressi |
